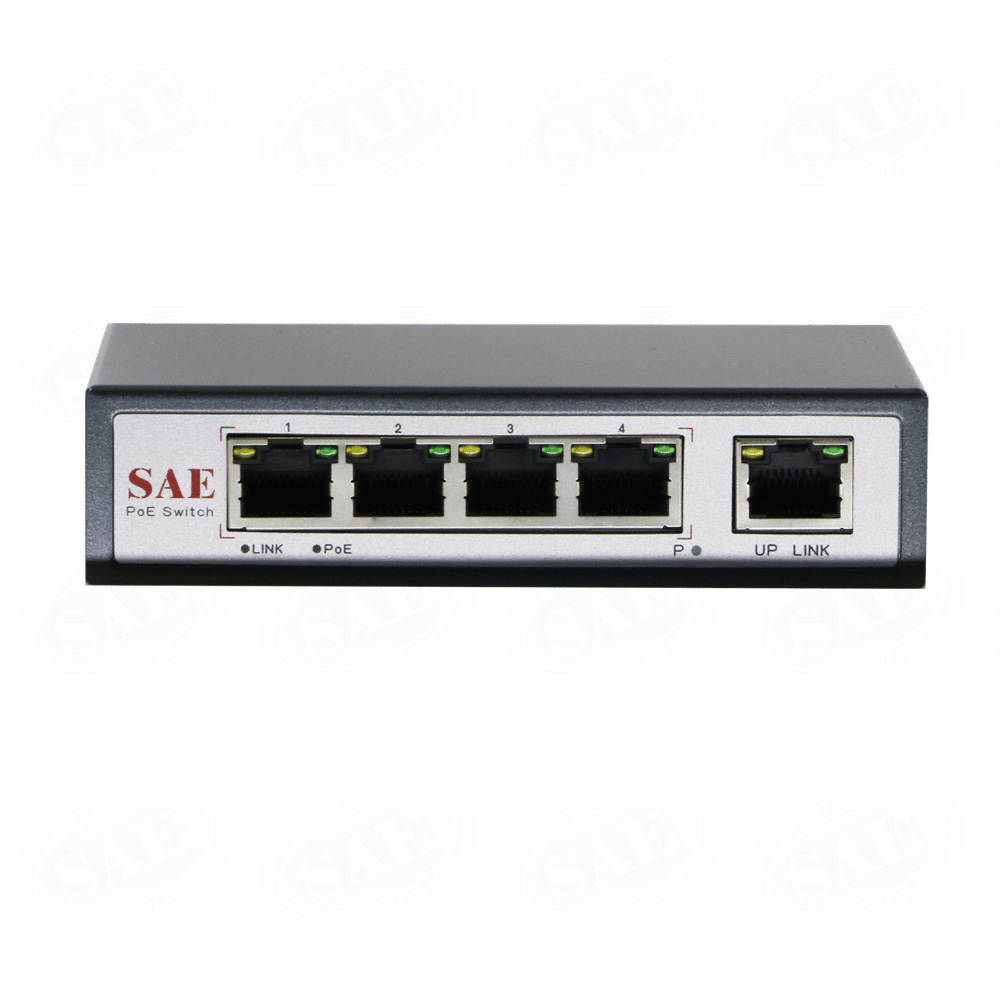

SAE-PE450-F
- 4 x 10/100Mbps PoE ports
- 1 x 10/100 Mbps Uplink fast ethernet port
- Support IEEE 802.3af (15.5 watt/port)
- 65 watt total output power
- 5 x 10/100 Mbps RJ45 Ports with auto-sensing capability

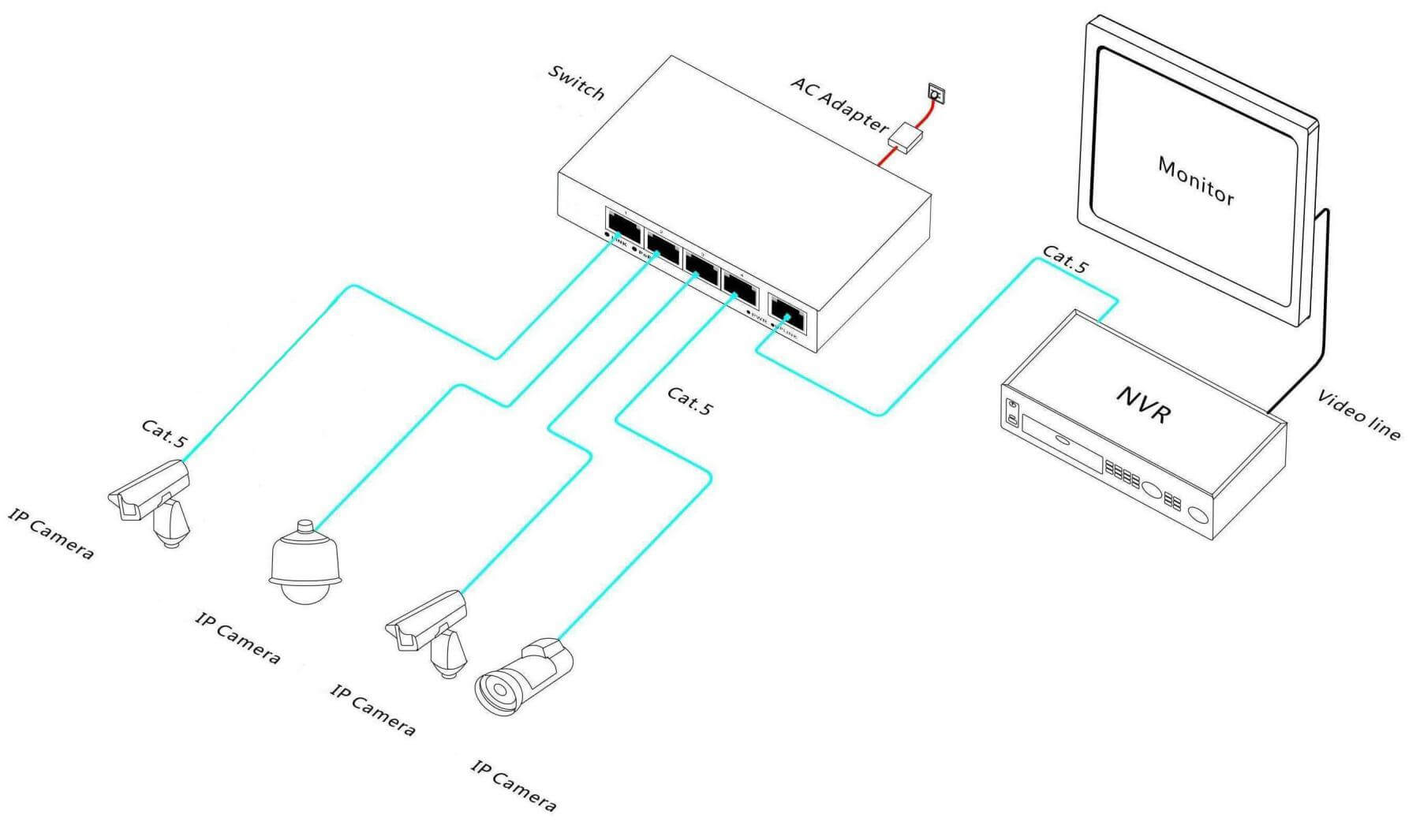

This SAE-PE450-F PoE switch can prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. One 4 fast Ethernet ports and one uplink port prepare any 10/100 Mbps link and the rest of 4 ports can supply industry-standard IEEE 802.3af power for every POE standard devices. Regards to using advanced auto-sensing algorithm the SAE-PE450-F gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, SAE-PE450-F can recognized automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™. Remarkably, It helps smart CCTV network designers to improve their planning and use the switch intelligently. SAE-PE450-F made by high quality of components were rigorous screened, have superior performance in stability, environmental adaptability. The product planned in a way of better resistance and ability to corrosion and electromagnetic interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.
· Full transferring data for network devices supported
· 5 x RJ45 ports fast ethernet auto-sensing
· Supports Auto MDI/ MDIX
· Strong, reliable power supply
· Architecturally store-and-forward protocol
· Natural cooling by method of Fan less design
· Metal compact package design, suitable for desktop or wall mount
| Performance (Switching capacity and forwarding rate) | |
|---|---|
| Address Database Size | 1000 |
| MTBF | 190000 hours (about 21 years) |
| Bandwidth | 1.6Gbps (non-blocking) |
| Network Latency (100 to 100M bps) | maximum delay less than 20 microseconds |
| Packet Buffer Memory | 768KB |
| Interface | |
| Ports | 5-Port 10/100Base-T |
| Protocol | |
| Store-And-Forward | |
| Standards | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3u 100BASETX | |
| IEEE 802.3i 10BASET | |
| power | |
| Power input | AC100-240V 50/60Hz (every country use a custom power plug) |
| Cable length detection | 100m |
| Environmental Aspects | |
| Dimensions | 118x85x27mm |
| Working Environment | Operating Temperature: 0 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing |
