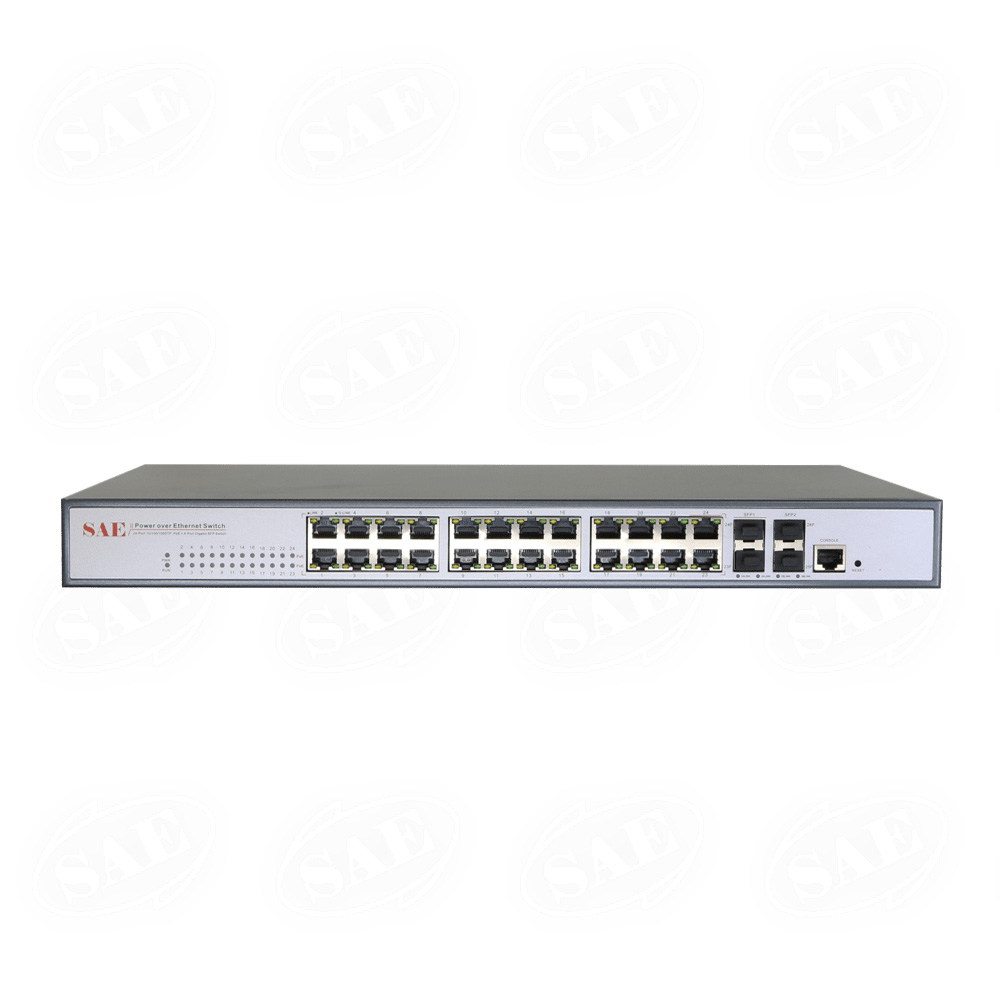

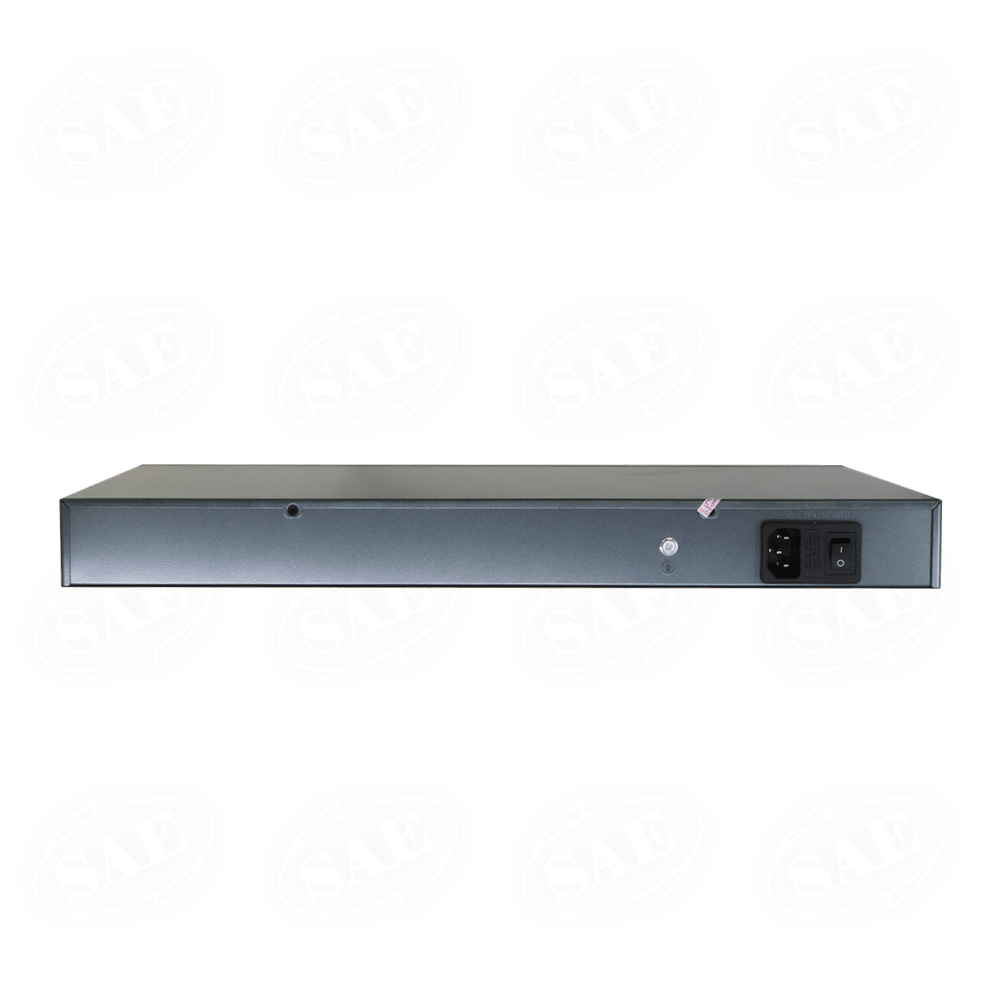

SAE-IPE242400-QGSFPM
- 24 x PoE Ports 10/100/1000Mbps
- 4 x uplink Gigabit SFP slot ports
- Layer 2+ manageable web interface
- 400 watt total power output
- DIN rail type/Working Temperature: -40～75℃
- Support IEEE 802.3af/at PoE standard

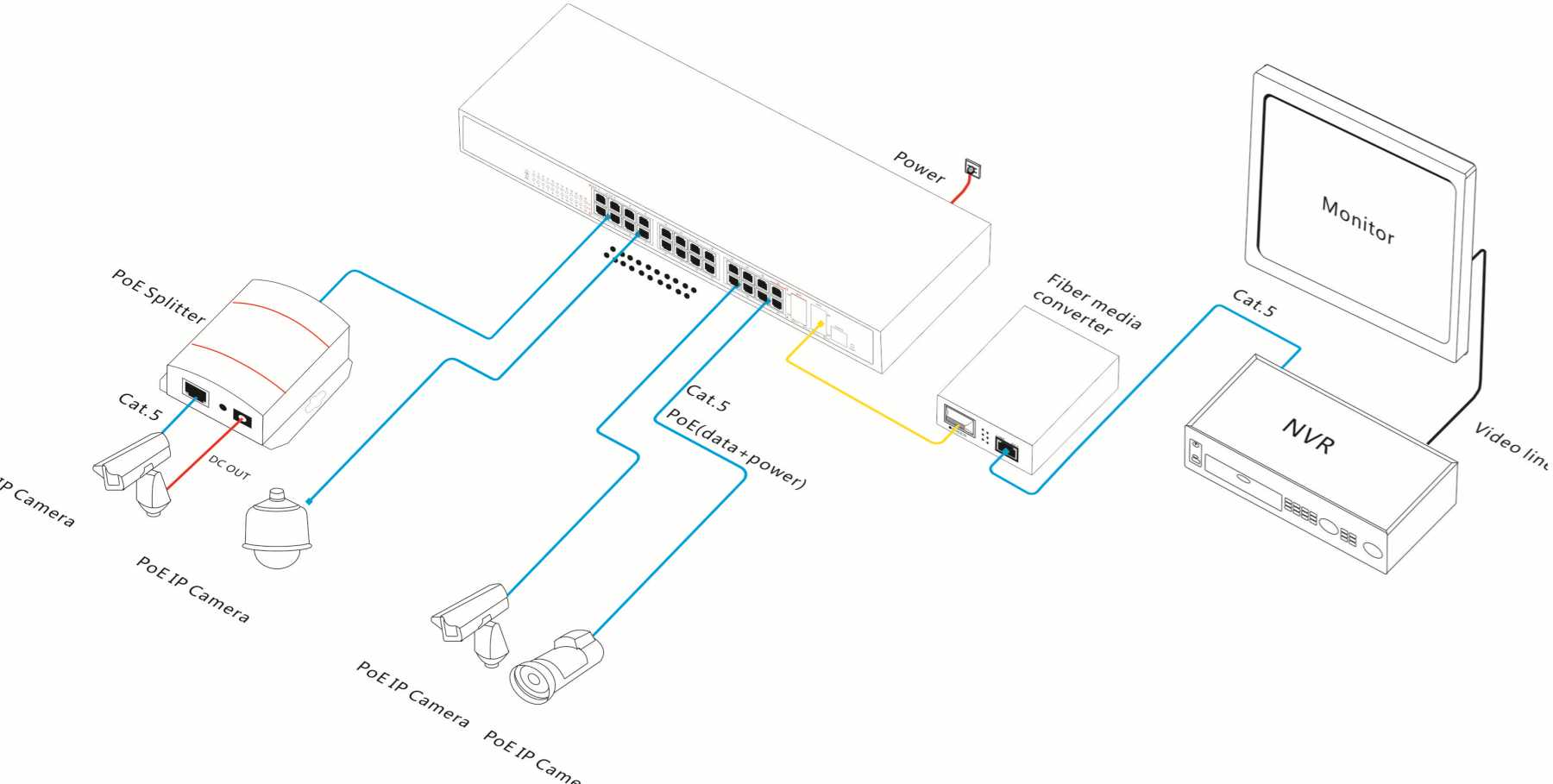

This SAE-IPE242400-QGSFPM Industrial Gigabit smart L2+ PoE switch can prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. One 24 Gigabit Ethernet ports and one console port it prepared any 10/100/1000 Mbps link and the rest of 24 ports can supply industry-standard IEEE 802.3af/ IEEE 802.3at power for every POE standard devices. Regards to using advanced auto-sensing algorithm the SAE-IPE242400-QGSFPM gives power only to IEEE802.3af/ IEEE 802.3at front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this PoE SAE-IPE242400-QGSFPM can recognize automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™. SAE-IPE242400-QGSFPM is made with high quality of rigorous screened components, which have superior performance in stability, environmental adaptability. It can work normally in very cold environment to very hot from -40℃ to +75 ℃.The product is planned in a way to have better resistance against corrosion and electromagnetic interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.
| Product | |
|---|---|
| Product code | I2400 |
| Performance (Switching capacity and forwarding rate) | |
| Performance (Switching capacity and forwarding rate) Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 38.69 |
| Switching Capacity in Gigabits per Second (Gbps) | 52 |
| Interface | |
| Ports | 24-Port 10/100/1000Base-T + 2x TP/SFP Combo + 2x (100/1000M) SFP slots |
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) | Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w |
| G.8032 ERPS | 440x290x44.5mm |
| Aggregation | Link Aggregation Control Protocol (LACP) IEEE 802.3ad; Up to 13 groups ;Up to 16 ports per group |
| VLAN | Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;Port-based VLAN; 802.1Q tag-based VLAN |
| Security | |
| Secure Shell (SSH) Protocol | SSH secures Telnet traffic in or out the switch، SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL)، HTTPS | SSL encrypts the http traffic، allowing advance secure access to the browser-based management GUI in the switch |
| Port Security | Locks MAC Addresses to ports، and limits the number of learned MAC addresses |
| DHCP Snooping | prevent unauthorized configuration and use of IP addresses، while providing support for IP Source Guard and ARP detection |
| IP Source Guard | Prevents datagram with spoofed addresses from being in the network |
| ARP Inspection | Prevent ARP spoofing attacks and ARP |
| Storm control | Prevents traffic on a LAN from being disrupted by a broadcast، multicast، or unicast storm on a port |
| ACLs | Support for up to 256 entries; Drop or rate limitation based on source and destination MAC، VLAN ID or IP address، protocol، port، differentiated services code point (DSCP) / IP precedence، TCP/ UDP source and destination ports، 802.1p priority، Ethernet |
| Quality of Service | |
| Hardware Priority Queue | Support 8 hardware queues |
| Scheduling | 8 COS queues per port support strict priority and weighted round-robin (WRR) |
| Classification | Port based; 802.1p(PCP) VLAN priority based; |
| Rate Limiting | Ingress policer;egress shaping and rate control;per VLAN، per port and flow based |
| Management (Web/ SSL، Telnet/ SSH، ping، Trivial File Transfer Protocol (TFTP)، SNMP، Syslog) | |
| Web GUI interface | Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration، system dashboard، maintenance، and monitoring |
| Dual Image | Dual image provides independent primary and secondary OS files for backup while upgrading |
| Firmware upgrade | Web browser upgrade (HTTP/ HTTPs) and TFTP;Upgrade through console port as well |
| Port mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| Other management | Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support) |
| Green Ethernet | |
| Green and Energy-saving Ethernet (EEE) | Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power on Gigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any packets when the switch detects the link up |
| Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter. |
| General | |
| Jumbo frames | Frame sizes up to 9KB supported on Gigabit interfaces |
| MAC Table | Up to 8K MAC addresses. |
| Discovery | |
| Link Layer Discovery Protocol (LLDP) | Used by network devices for advertising their identities، capabilities، and neighbors on a IEEE 802 local area network، principally wired Ethernet. |
| PoE | |
| PoE Standard: | IEEE802.3af |
| PoE Ports | 24 ports support PoE Power Pin Type |
| PoE Port Power: | 15.4W per PoE port، can be customized by Web management software |
| Power Pin Type: | End-span (Mid-span optional) |
| Minimum Requirements | |
| Web browser | Mozilla Firefox version 2.5 or later، Microsoft Internet Explorer version 6 or later; Category 5 Ethernet network cable; TCP/IP، network adapter، and network operating system (such as Microsoft Windows، Linux، or Mac OS X) installed on each computer in ne |
| Environmental Aspects | |
| Dimensions | 440x290x44.5mm |
| Working Environment | Operating temperature: -40 to 75 ℃; Storage temperature: -40℃ to 75 ℃; Operating humidity: 10% to 90%، relative، non-condensing |
