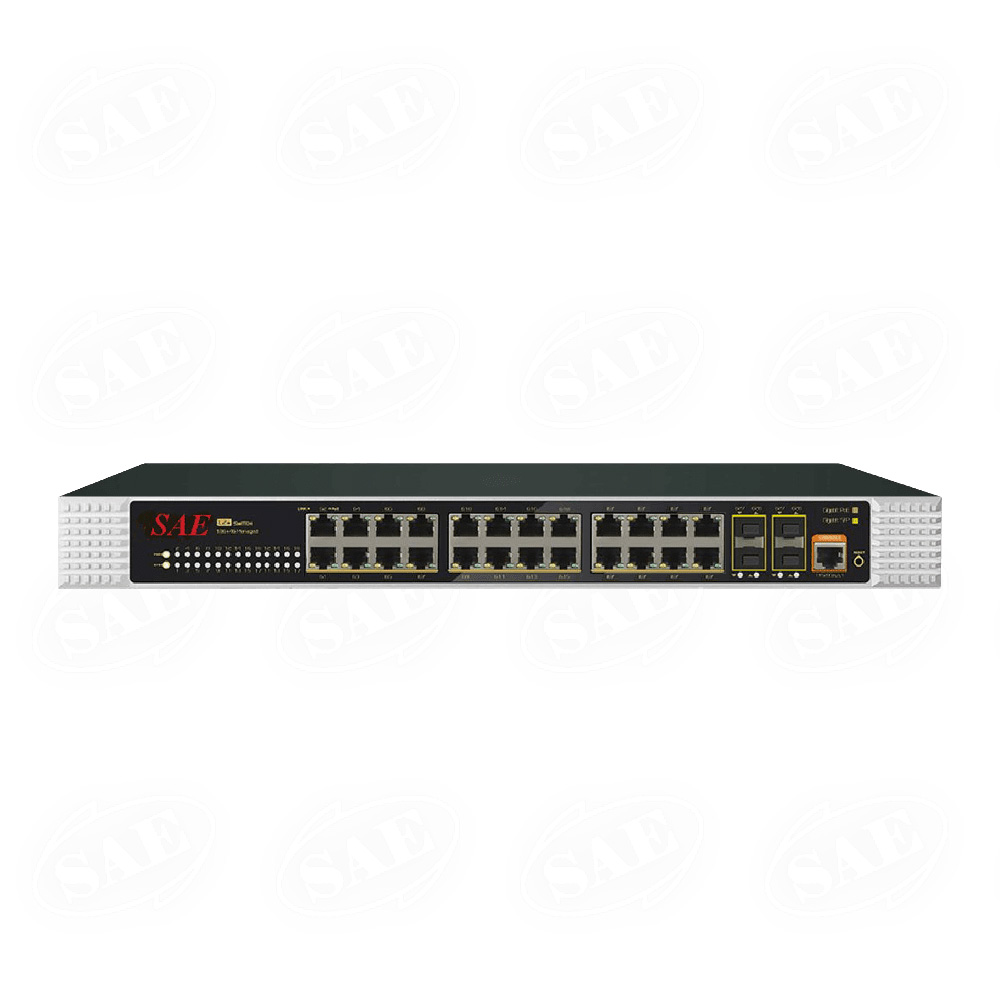

SAE-IPE242400F-QFIM
- 24 x PoE Ports 10/100/1000Mbps
- 4 x 1G SFP Up-Link Ports ( Combo Port)
- Support IEEE 802.3af (15.5 watt/port)
- L2+ managed industrial PoE fiber switch
- DIN rail type/Working Temperature: -40～75℃
- 400 watts total power output

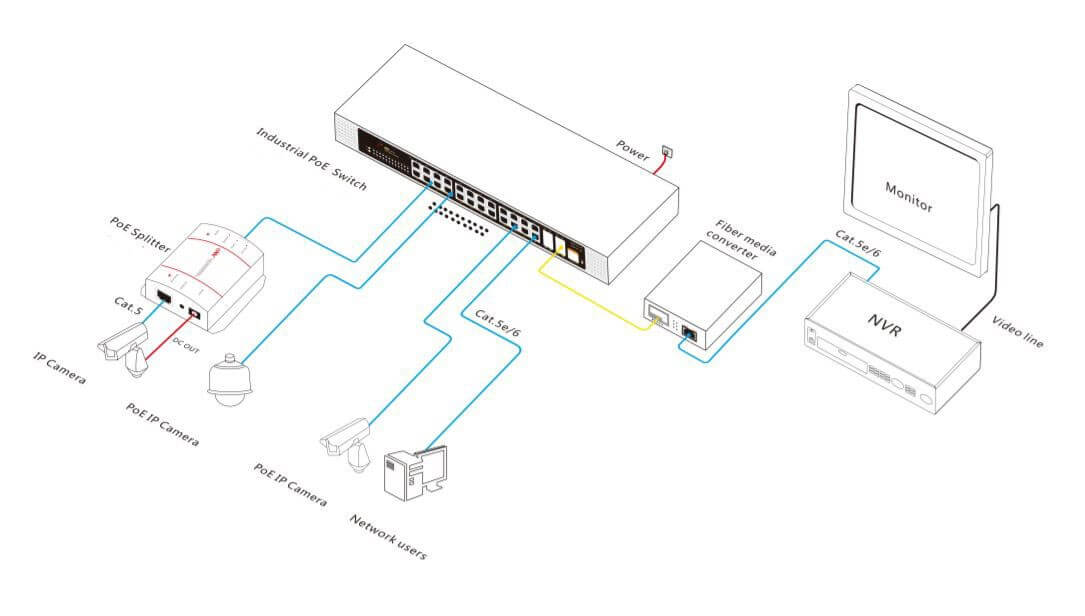

This SAE-IPE242400F-QFIM is a powerful cutting edge managed switch which can prepare telecommunication between fiber optic uplink ports to the server port as well as other fiber optic devices. Its fan less and engineered design leads to minimum power consumption. It is also compliant with Looped Network Redundancy. It provides the ideal combination of affordability and capabilities for entry level networking of industrial, enterprise application which demands industrial, surveillance, IP Phone, IP Camera or Wireless applications, thus helps you create a more efficient workforce.
| Product | |
|---|---|
| Warranty | 3 years; lifelong maintenance. |
| Certification | CCC;CE mark; commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
| Net /Gross Weight | <4.5kg / <5.0kg |
| Dimension | 440*298*44.5mm |
| Storage Humidity | 5%~95% (Non condensing) |
| Product | 12-port Switch ( SAE-IPE242400F-QFIM ) |
| Product Model | SAE-IPE242400F-QFIM |
| PoE Standard | IEEE802.3af/at |
| SFP Port | 1G SFP |
| Forwarding Mode | Store and Forward (full wire speed) |
| Switching Capacity | 256Gbps |
| Forwarding Rate@64byte | 38.69Mpps |
| MAC | 8K |
| Buffer Memory | 84M |
| Optical Cable | Multi mode: 850nm 0 ~ 550M;single mode: 1310nm 0 ~ 40KM; 1550nm 0 ~ 120KM. |
| Power Supply Pin | Only support 1/2 (+); 3/6 (-) |
| Power per port (max/Avg) | 30W/15.4W |
| LED | Power indicator : PWR (green); System indicator :(green); Network indicator: Link (yellow); SFP indicator: L/A (green); |
| Power Supply | DC 12-48 V |
| Operation TEMP | -40~+80°C |
| Operation Humidity | 5%~90% (Non condensing) |
| Storage TEMP | -40~+85°C |
| Network Protocol | |
| IEEE802.3x | |
| IEEE802.3z 1000Base-X; | |
| IEEE802.3ae 10GBase-LR/SR | |
| IEEE802.3ab 1000Base-T; | |
| IEEE802.3u 100Base-TX; | |
| IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; | |
| Interface | |
| 2 * V+; V- Extra DC power Input | |
| 1*Console RS232 port (115200;N;8;1); | |
| 4*1G uplink SFP+ (2 x Combo Port) | |
| 24*10/100/1000M RJ45 ports; | |
| Twisted Pair Transmission | |
| 10BASE-T: Cat3;4;5 UTP(≤100 meter) | |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
| Lightning protection / protection level | |
| IEC61000-6-2(Common Industrial Standard) | |
| 15/CISPR22(EN55022):Class A | |
| IEC61000-4-16(common-mode transmission):30V; 300V;1s FCC Part | |
| IEC61000-4-12/18(shockwave):CM 2.5kV;DM 1kV | |
| IEC61000-4-10(damped oscillation):30A/m 1MHz | |
| IEC61000-4-9(pulsed magnet field):1000A/m | |
| IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m;1s to 3s | |
| IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) | |
| IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV | |
| IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV | |
| IEC61000-4-3(RS):10V/m(80~1000MHz) | |
| Lightning protection: 6KV 8/20us;Protection level: IP40 | |
| IEC61000-4-2(ESD):±8kV contact discharge;±15kV air discharge | |
