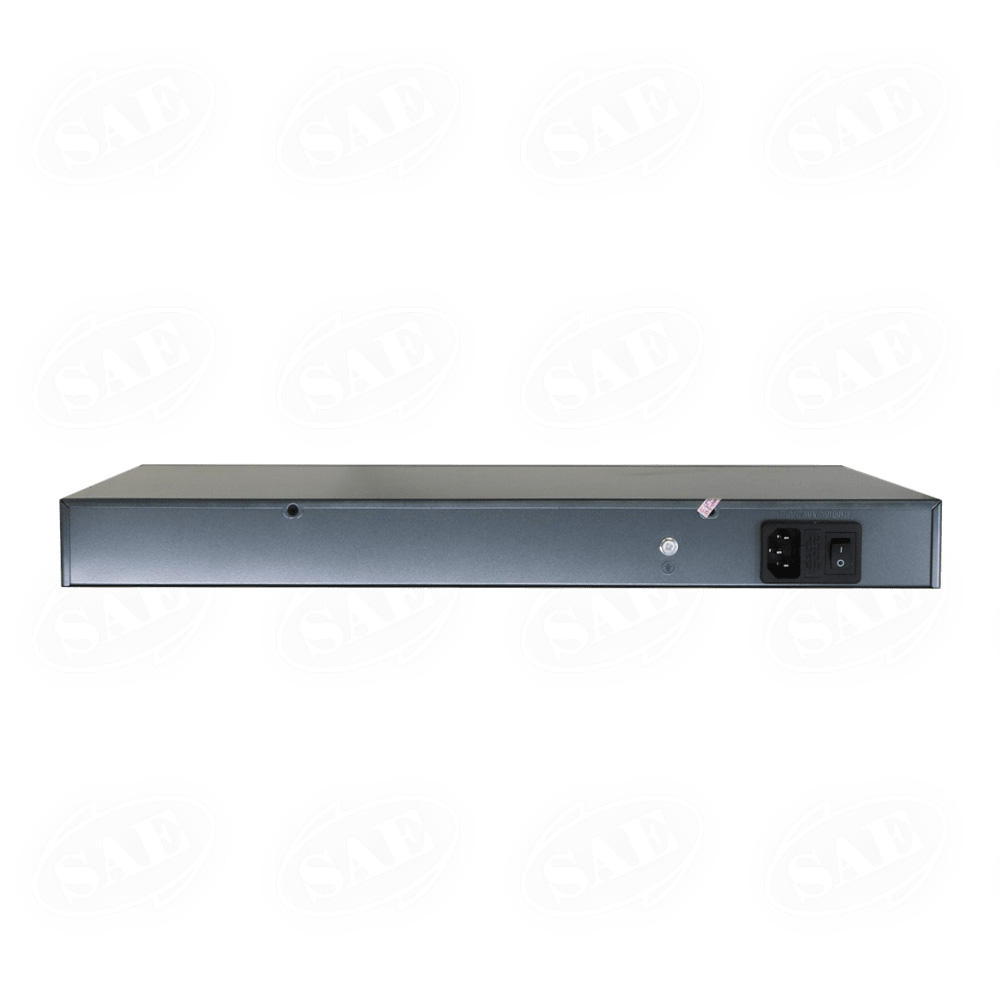

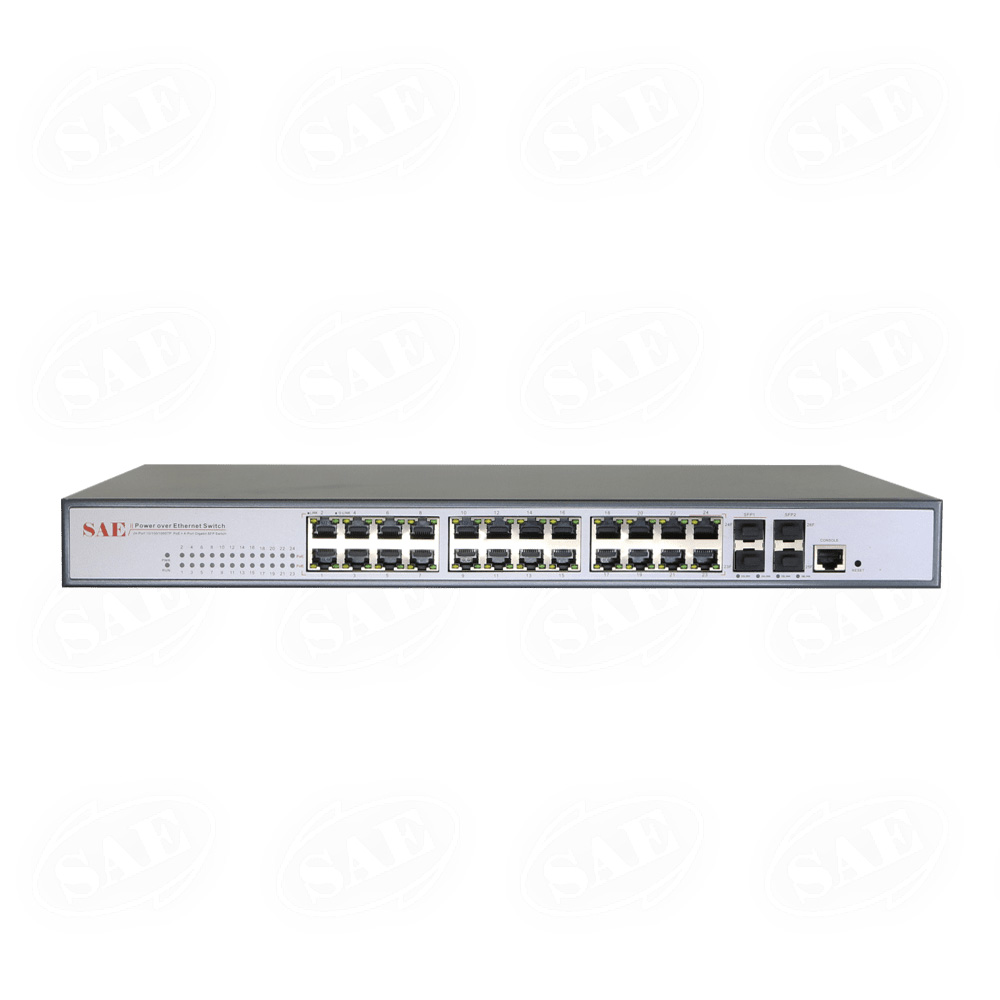

SAE-PE242400F-QGSFP-NMS
- 24 x PoE Ports 10/100/1000Mbps
- 4 x uplink Gigabit SFP slot ports
- Layer 2+ manageable web interface
- 400 watt total power output
- Support IEEE 802.3af/at PoE standard
This Gigabit smart L2+ PoE switch can prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. One 24 Gigabit Ethernet ports and one console port it prepared any 10/100/1000 Mbps link and the rest of 24 ports can supply industry-standard IEEE 802.3af power for every POE standard devices. Regards to using advanced auto-sensing algorithm the SAE-PE242400-QSFP-NMS gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this manageable PoE Switch SAE-PE242400-QSFP-NMS can recognized automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™. Remarkably, It has four giga bit fiber ports(SFPs) that helps smart CCTV network designers to improve their planning and use the switch intelligently. Additionally, network planners would control the network parameters via web management system. SAE-PE242400-QSFP-NMS made by high quality of components were rigorous screened, have superior performance in stability, environmental adaptability. The product planned in a way of better resistance and ability to corrosion and electromagnetic interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.
| Performance (Switching capacity and forwarding rate) | |
|---|---|
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 38.69 |
| Switching Capacity in Gigabits per Second (Gbps) | 256Gbps |
| Interface | |
| Ports | 24-Port 10/100/1000Base-T + 4x (100/1000M) SFP slots |
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) | Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w |
| G.8032 ERPS | <50ms ring protection for industrial high reliable application |
| Aggregation | Link Aggregation Control Protocol (LACP) IEEE 802.3ad; Up to 13 groups ;Up to 16 ports per group |
| VLAN | Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;Port-based VLAN; 802.1Q tag-based VLAN |
| IGMP v1/v2 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups (source-specific multicasting is not supported) |
| Security | |
| Secure Shell (SSH) Protocol | SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL), HTTPS | SSL encrypts the http traffic, allowing advance secure access to the browser-based management GUI in the switch |
| Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
| DHCP Snooping | prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection |
| IP Source Guard | Prevents datagram with spoofed addresses from being in the network |
| ARP Inspection | Prevent ARP spoofing attacks and ARP |
| Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| ACLs | Support for up to 256 entries; Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet |
| Quality of Service | |
| Hardware Priority Queue | Support 8 hardware queues |
| Scheduling | 8 COS queues per port support strict priority and weighted round-robin (WRR) |
| Classification | Port based; 802.1p(PCP) VLAN priority based; |
| Rate Limiting | Ingress policer;egress shaping and rate control;per VLAN,per port and flow based |
| Management (Web/ SSL, Telnet/ SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog) | |
| Web GUI interface | Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring |
| Dual Image | Dual image provides independent primary and secondary OS files for backup while upgrading |
| Firmware upgrade | Web browser upgrade (HTTP/ HTTPs) and TFTP;Upgrade through console port as well |
| Port mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| Other management | Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support) |
| Green Ethernet | |
| Green and Energy-saving Ethernet (EEE) | Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power on Gigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any packets when the switch detects the link up |
| Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter. |
| General | |
| Jumbo frames | Frame sizes up to 9KB supported on Gigabit interfaces |
| MAC Table | Up to 8K MAC addresses. |
| Discovery | |
| Link Layer Discovery Protocol (LLDP) | Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, principally wired Ethernet. |
| PoE | |
| PoE Standard | IEEE802.3af |
| PoE Ports | 24 ports support PoE Power Pin Type |
| PoE Port Power | 15.4W per PoE port, can be customized by Web management software |
| Power Pin Type | End-span (Mid-span optional) |
| Minimum Requirements | |
| Web browser | Mozilla Firefox version 2.5 or later, Microsoft Internet Explorer version 6 or later; Category 5 Ethernet network cable; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in n |
| Environmental Aspects | |
| Dimensions | 440x290x44.5mm |
| Working Environment Operating temperature | -40 to 75 ℃; Storage temperature: -40℃ to 75 ℃; Operating humidity: 10% to 90% , relative, non-condensing |
