smart architecture espasana

SAE-PE16160F-DGU

  • 16 x PoE Ports 10/100Mbps
  • 2 x Up-link Gigabit Combo port (SFP+Rj45)
  • Support IEEE 802.3af (15.5 watt/port)
  • 250 watt total power output
  • Unmanaged PoE fiber switch

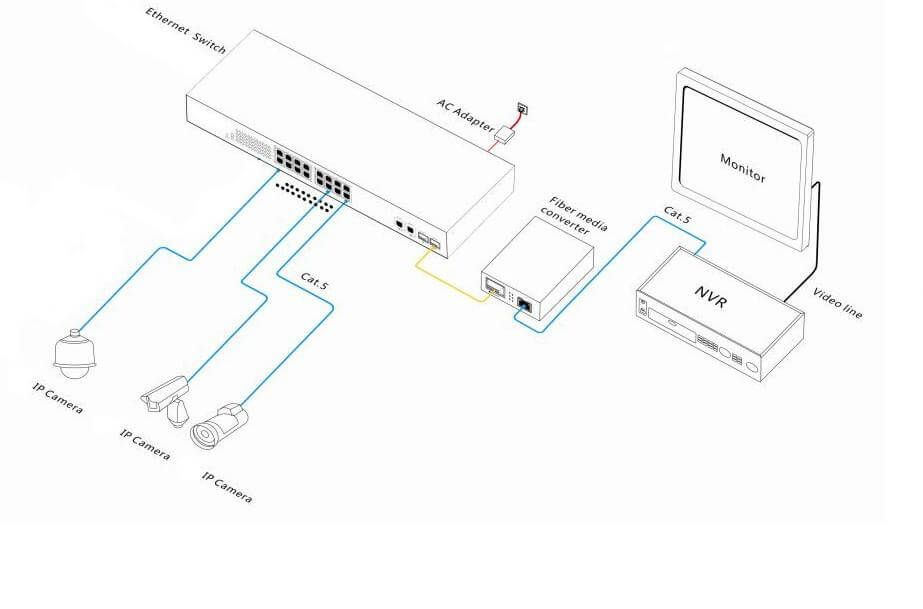

This SAE-PE16160-FDG-U PoE switch prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. One 16-fast Ethernet ports and one 2-Combo ports (gigabit sfp + gigabit RJ 45) prepare any 1000 Mbps link and the rest of 16 ports can supply industry-standard IEEE 802.3af power for every POE standard devices. Regards to using advanced auto-sensing algorithm the SAE-PE16160-FDG-U gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this PoE Switch SAE-PE16160-FDG-U can recognized automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™. Remarkably, it has two gigabit fiber ports (SFPs) that helps smart CCTV network designers to improve their planning and use the switch intelligently. SAE-PE16160-FDG-U made by high quality of components were rigorous screened, have superior performance in stability, environmental adaptability. The product planned in a way of better resistance and ability to corrosion and electromagnetic interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.
