SAE-30P4FE4E1-TRX
- 30 Line telephone tip-ring channel
- 4Channel E1 interface
- 4Channel 10M/100M Ethernet ports
- Max Power consumption: 10W
- optional SNMP supported

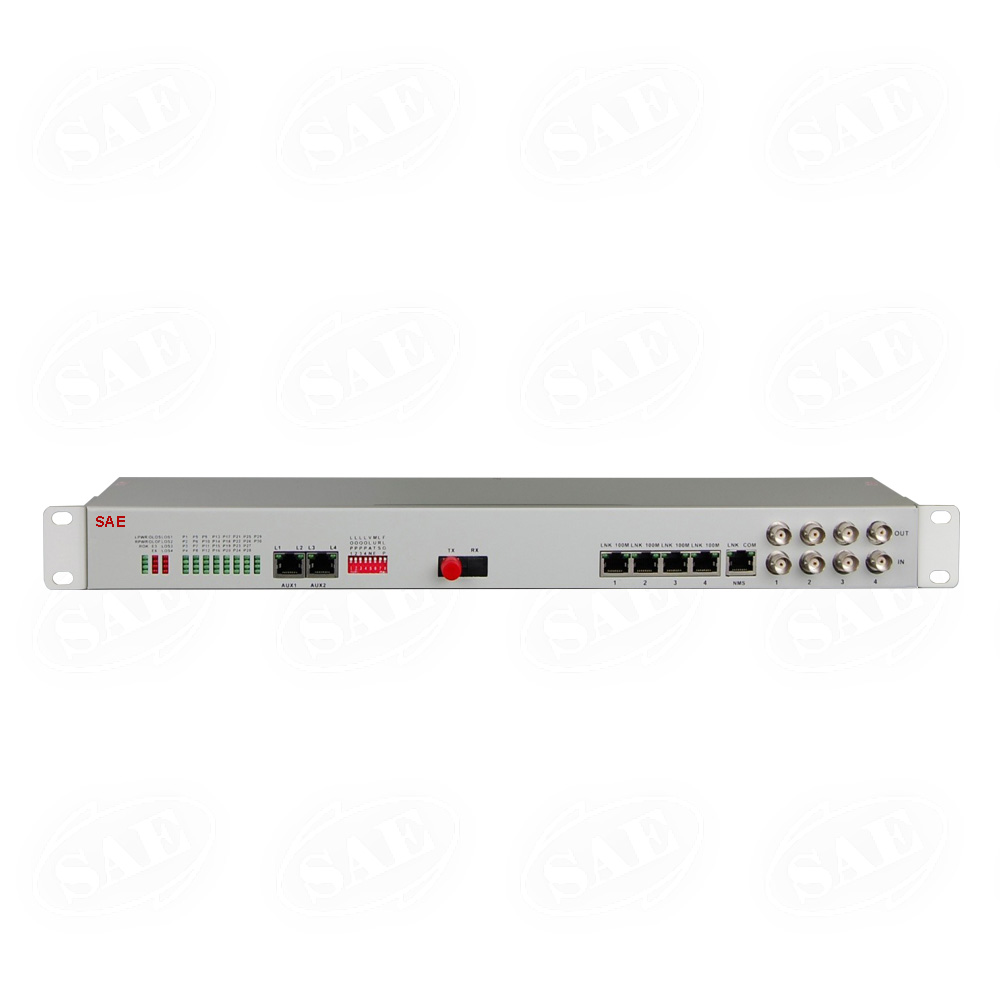

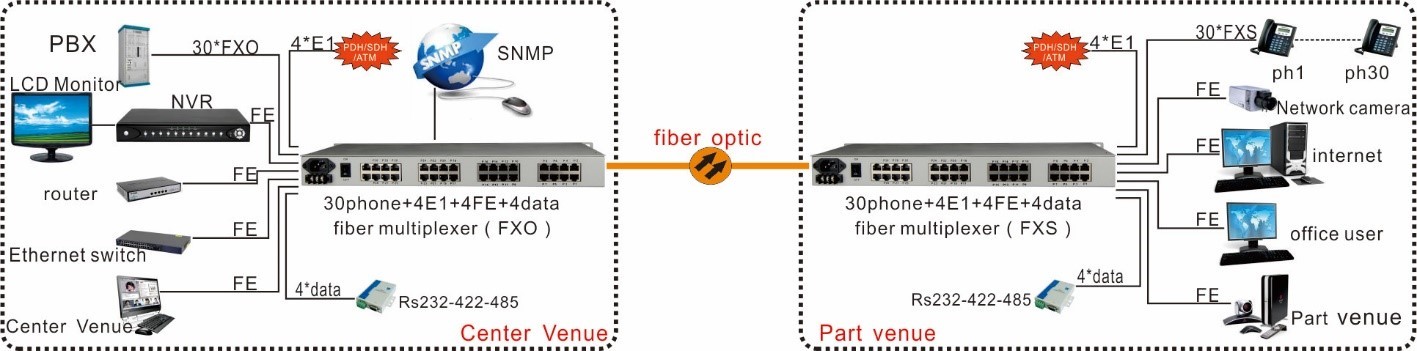

This SAE-30P4FE4E1-TRX is 1U, which supplies 30 line telephone output, 1-4Channel E1 interface, 4Channel 10M/100M Ethernet interface (Wire speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, phone signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M).
SAE-30P4FE4E1-TRX is made with high quality of rigorous screened components, which have superior performance in stability, environmental adaptability. It can work normally in very cold environment to very hot from -35℃to +75℃. The product is planned in a way to have better resistance against corrosion and electromagnetic interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.
| standards | |
|---|---|
| Support protocol G.703 for E1/ protocol G.742 and G.823 for Jitter tolerance | Telephone interface with power protection |
| E1 specification | |
| Packet Forwarding Rate: n*64Kbps±50ppm/ Allowed debilitation: 0 to 6dBm | power reached IEC61000-4-5 protocol |
| FXS Phone specification | |
| Voltage of Ring: 75V | E1 Impedance: 75Ω (unbalance) |
| Total amount of resistance for 2 line: 600 Ohm (pick up) | 120Ω (balance); |
| Ethernet interface(10/100M) | |
| Interface rate:10/100 Mbps | Frequency of Ring: 25Hz |
| half/full duplex auto-negotiation | Return loss: 40 dB |
| FXO Switch specification/ EM 2/4 Line | |
| MAC Address Capability: 4096 | Interface Standard: Compatible with IEEE 802.3 |
| Voltage of Ring: 35V | IEEE 802.1Q (VLAN) |
| Power | |
| Total amount of resistance for 2 line in FXO switch & EM 2/4 Line: 600 Ohm | Connector: RJ45 |
| Multifold power mode options: AC220V | support Auto-MDIX |
