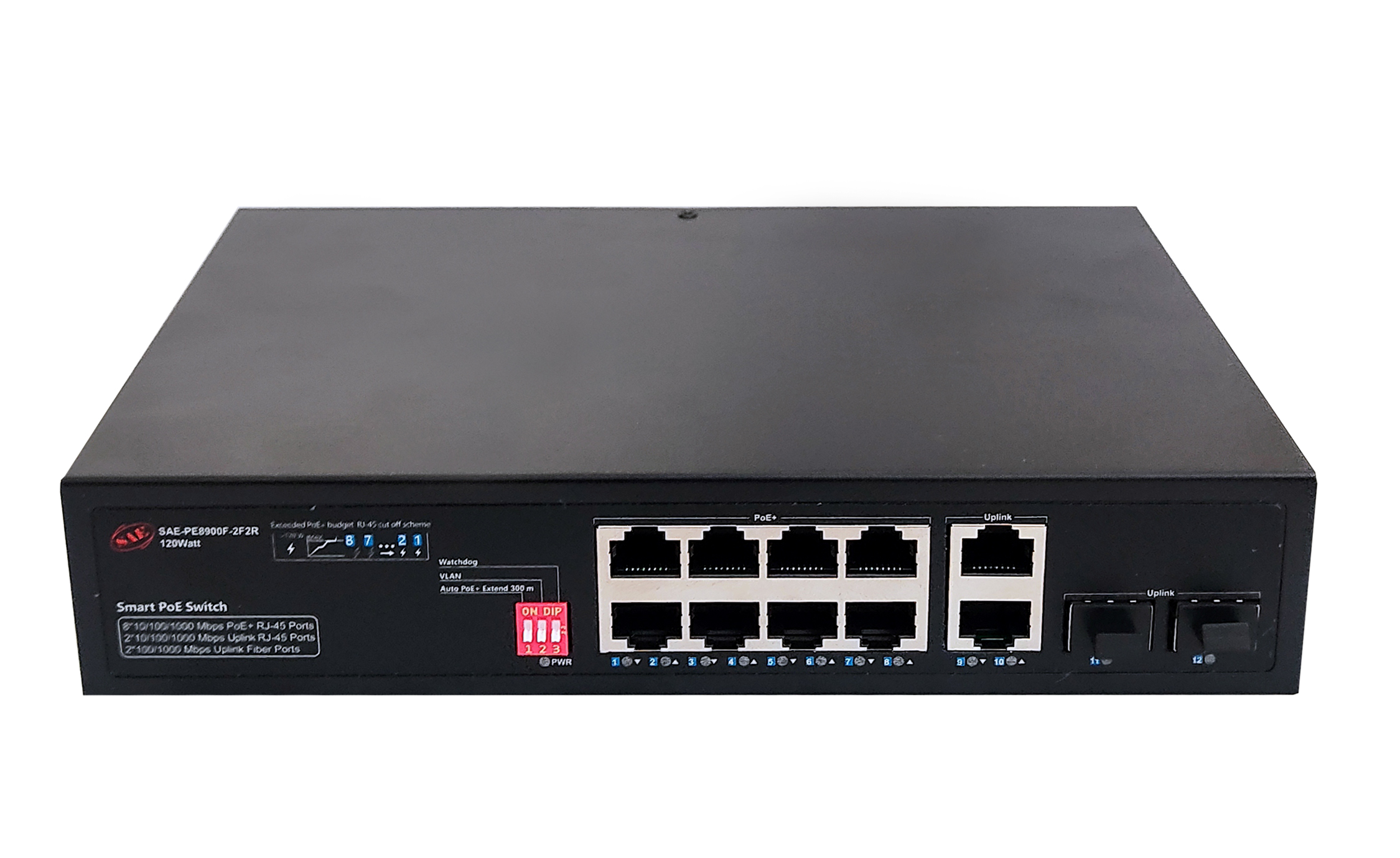

The SAE-PE8900F-2F2R series is an unmanaged PoE switch that provides a solution where both power and data can be delivered from a single point, utilizing Power over Ethernet (PoE) over a single cable. It features 8 PoE Gigabit Ethernet ports and 4-gigabit uplink ports (2SFP+2RJ45), ensuring any 1000Mbps link is supported. The 8 PoE ports can supply industry-standard IEEE 802.3af/at power to compatible PoE devices. With its advanced auto-sensing algorithm, the SAE-PE8900F-2F2R delivers power only to IEEE 802.3af/at compliant devices, eliminating concerns when connecting PoE or non-PoE devices. Additionally, it automatically cuts off power when PoE devices are disconnected.

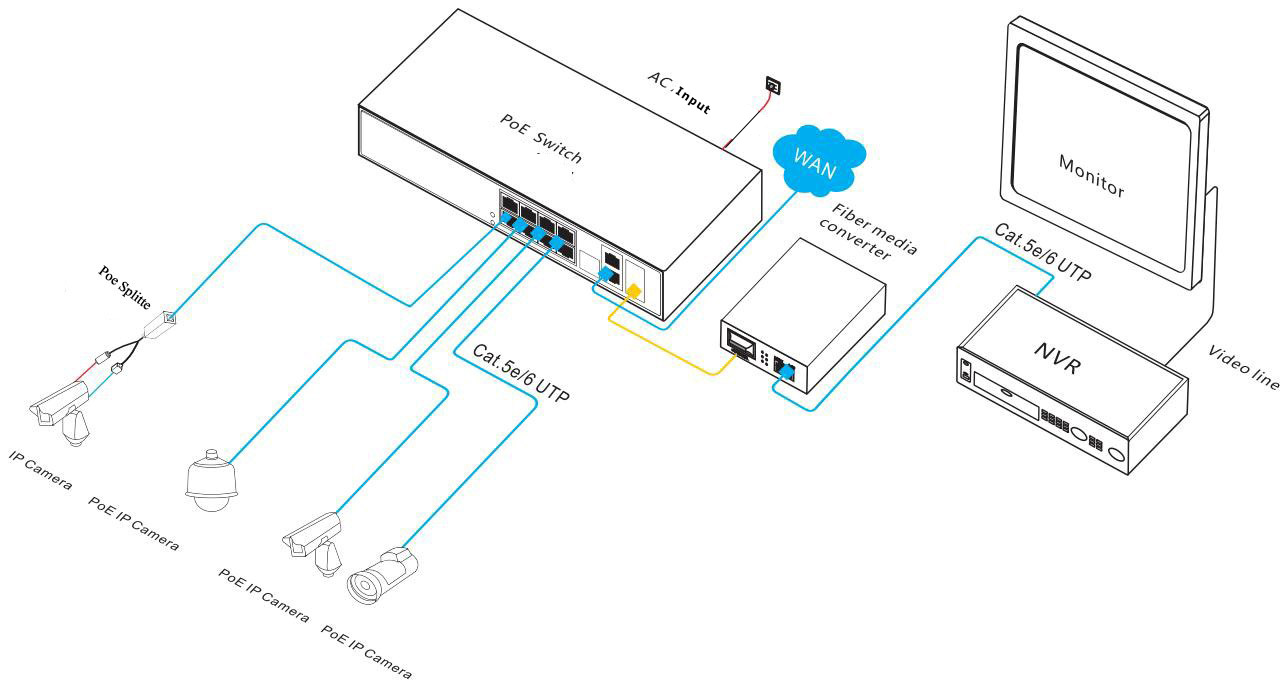

Intelligently, this unmanaged PoE switch can automatically recognize the PoE requirements of connected devices, as well as their speed, duplex, and cable type. It also includes two gigabit fiber ports (SFPs), which are ideal for smart CCTV network designers to enhance their planning and utilize the switch efficiently. The SAE-PE8900F-2F2R is built with high-quality components that have been rigorously tested, ensuring superior performance in stability and environmental adaptability. The product is designed to offer better resistance to corrosion and electromagnetic interference. Its power input is designed to be reliable and suitable for various environments, ensuring robust performance in diverse conditions.

Technical Specifications of SAE-PE8900F-2F2R Unmanaged PoE Switch

Number and Type of Ports:

8× 10/100/1000Base-T/TX PoE ports (Data/Power)
2× 10/100/1000Base-T/TX RJ45 uplink ports (Data)
2× 10/100/1000Base-X SFP uplink ports (Data)

PoE Support:

PoE on Ports 1-8
Supports IEEE 802.3af/at standards
Maximum power per port: 30W (average 15.4W)
Total PoE budget: 120W
Power supply pins: Default 1/2 (+), 3/6 (-)

Supported Network Protocols and Standards:

IEEE802.3 (10BASE-T)
IEEE802.3i (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-T)
IEEE802.3x (Flow Control)

Special Features:

Dial code switch for port prioritization
AI Extend Mode: Increases transmission distance up to 300m (limited to 10Mbps), while other ports maintain 100M/1000M within 100m
VLAN Mode: Isolation of ports 1-8
AI-PoE Mode: Automatic monitoring and self-healing of PoE networks (PoE Watchdog) for resolving IP camera connectivity issues

Hardware Specifications:

Forwarding Mode: Store and Forward
Switching Capacity: 24Gbps
Buffer Memory: 4M
MAC Address Table: 4K
Forwarding Rate: 17.86Mpps

Transmission Distance:

Twisted Pair (Cat5 UTP cables):
- 10BASE-T: Up to 300m
- 100BASE-TX & 1000BASE-T: Up to 100m
Optical Fiber: Depends on the selected SFP module

Power Supply and Consumption:

Built-in power adapter: AC 100~240V, 50-60Hz, 120W
Standby power consumption: <4W
Full load power consumption: <120W

Environmental Conditions:

Operating Temperature: -20°C to 55°C
Operating Humidity: 5% to 90% RH (non-condensing)
Storage Temperature: -40°C to 75°C
Storage Humidity: 5% to 95% RH (non-condensing)

Dimensions and Installation:

Dimensions: 220×145×44 mm
Net Weight: <1kg
Gross Weight: <1.2kg
Installation Method: Desktop or Wall-mounted

Protection and Safety:

Electrostatic Discharge (ESD) Protection: ±8kV contact discharge, ±15kV air discharge
Surge Protection:
- Power: CM ±4kV / DM ±2kV
- Ports: ±4kV
Protection Level: IP30

Certifications:

CCC, CE, RoHS
EN60950 (LVD), FCC Part 15 Class B


Bandwidth	24Gbps
Forwarding Rate	17.86Mpps
Network Latency (100 to 100M bps)	maximum delay less than 20 microseconds
Packet Buffer Memory	4M
Address Database Size	1000
MTBF	190000 hours (about 21 years)
Interface
Ports	8-Port 10/100/1000M Base-T + 2x Gigabit SFP slots +2x Gigabit RJ45
Protocol
Store-And-Forward
Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
power

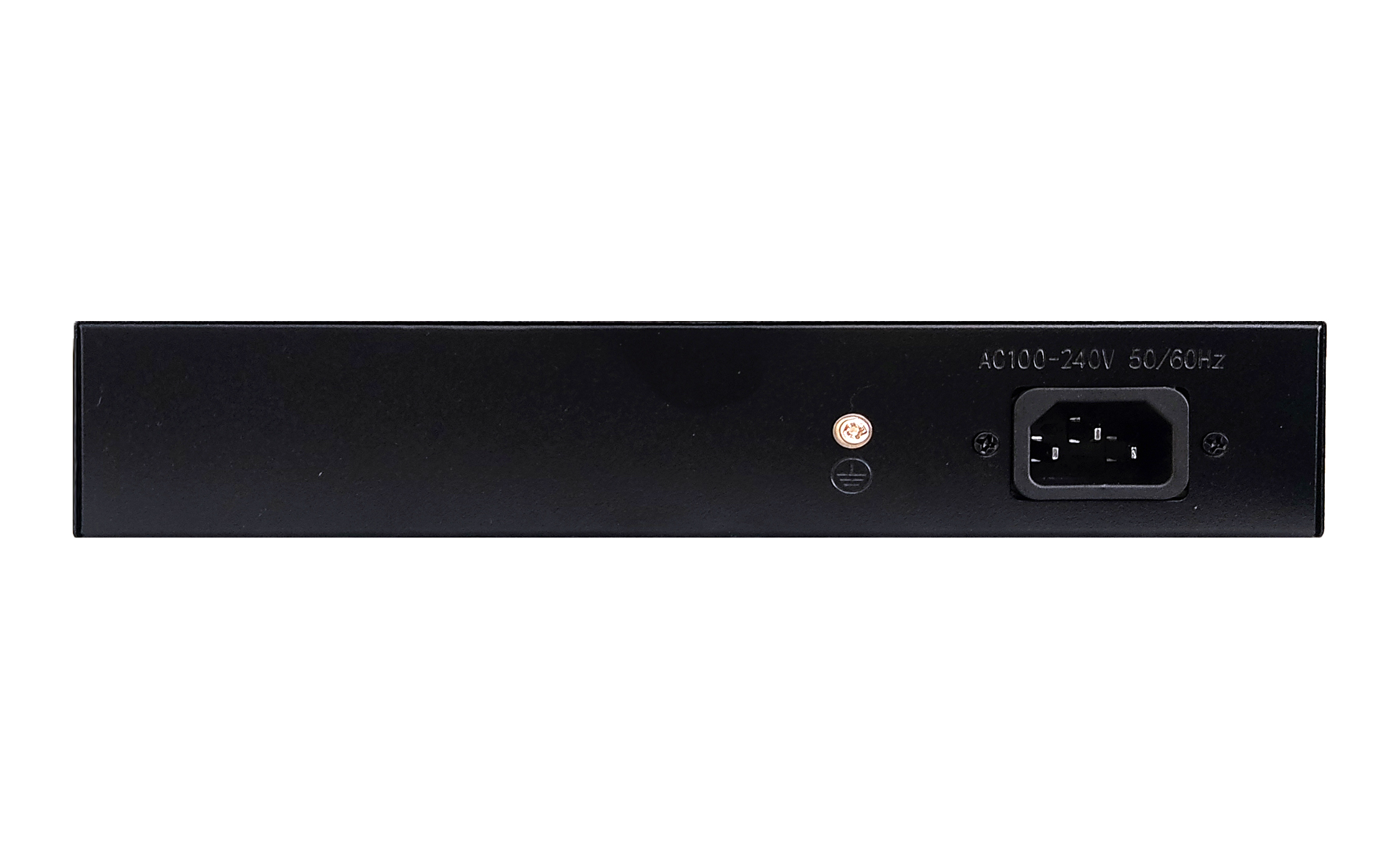

Power input	AC100-240V 50/60Hz 120W (every country use a custom power plug)
Cable length detection	100m
Environmental Aspects
Dimensions	22014544mm
Working Environment	Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -40 ° ~ 75 ° C Operating Humidity: 5% ~ 95%
