PoE سوییچ 8 پورت مدیریتی هوشمند ساختار اسپادانا SAE-IPE8900F-QFIM ، توانایی انتقال توان به همراه دیتا از مبدا به مقصد از طریق یک کابل شبکه را داراست. این سوئیچ از 8 پورت شبکه با سرعت انتقال دیتا در هر پورت شبکه برابر10/100/1000Mbps و با بکارگیری 2 پورت گیگ به صورت RJ45 و 4پورت SFP گیگابیتی در بخش آپ لینک تشکیل شده است. همچنین 8 پورت شبکه قابلیت انتقال توان با استاندارد صنعتی IEEE 802.3af را برای هر دستگاه PoE استاندارد دارد. این سوییچ 8 پورت مدیریتی ، توانایی مدیریت پورتها را بوسیله Web Browser فراهم کرده است. این محصول با بکارگیری الگوریتم پیشرفته سنجش خودکار اتصالی دستگاه ها (advanced auto-sensing)، توان را بصورت خودکار توسط کابل شبکه تنها به دستگاههایی که استاندارد صنعتی IEEE 802.3f را پشتیبانی میکنند، تحویل می دهد. این مزیت می تواند اتصال دستگاههای غیر PoE به این محصول را بدون مشکل پشتیانی کند. این سوئیچ مدیریتی قدرتمند می تواند ارتباط بین پورت های فیبر نوری به پورت سرور و سایر دستگاه های فیبر نوری را آماده کند. طراحی fan less و مهندسی آن باعث می شود حداقل مصرف انرژی انجام شود.

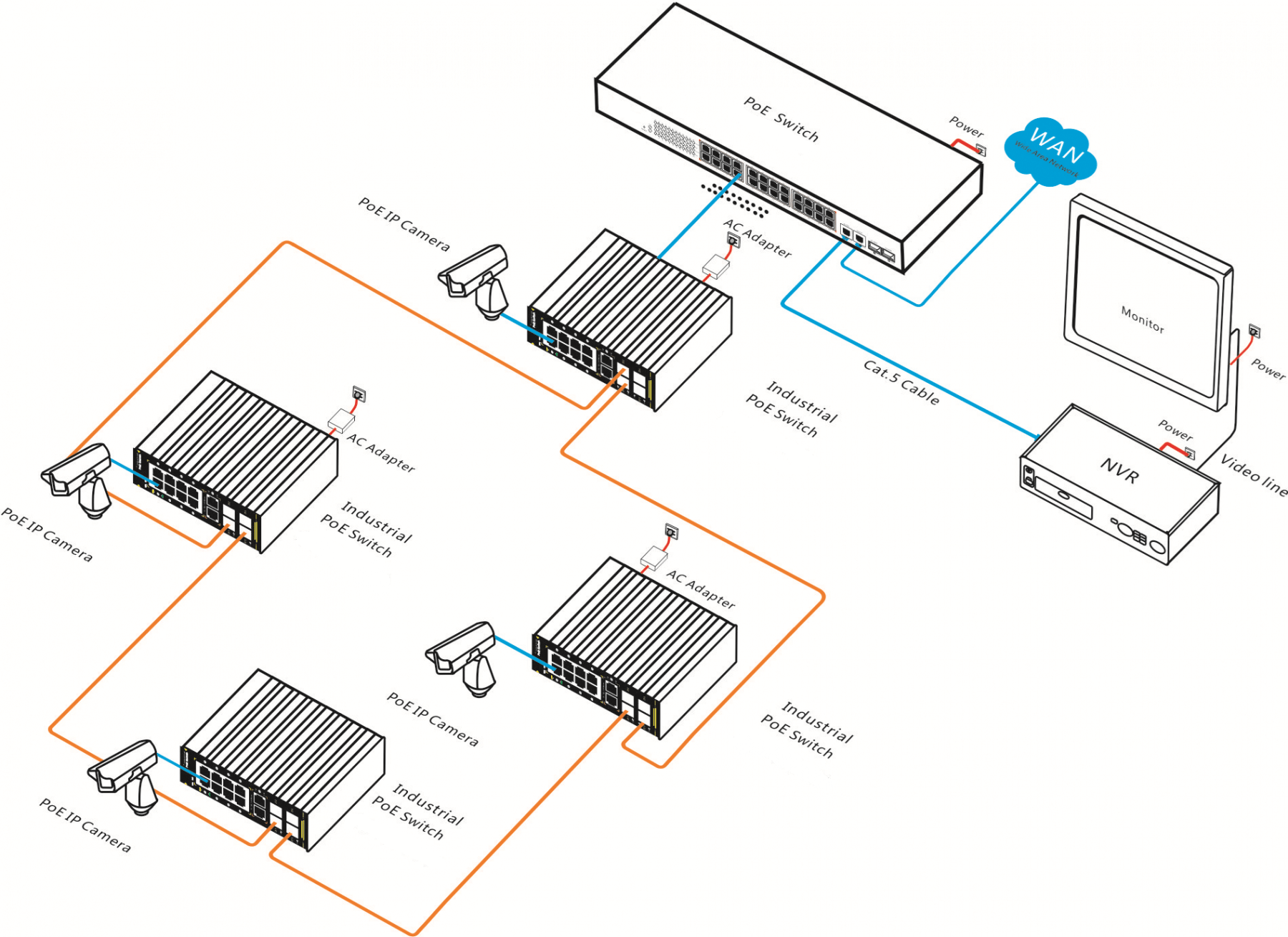

توان تولیدی درPoE سوییچ 8 پورت هوشمند ساختار اسپادانا SAE-IPE8900F-QFIM برای هر پورت به صورت گارانتی per port 15.4W و در مجموع 120W می باشد. همچنین طول ارسال دیتا بر روی پورت شبکه 100متر است. بکارگیری 4 پورتSFP گیگابیتی در SAE-IPE8900F-QFIM امکان بهرهوری هرچه بهتر منابع در شبکههای CCTV را به طراحان این حوزه داده و منجر به استفاده هوشمندانه از سوییچ ها را در شبکههای CCTV می شود. این محصول با بکارگیری المانهای با کیفیت بالا در تولید، دارای عملکرد برتر در شرایط محیطی سخت و ناپایدار است. طراحی الکترونیکی این محصول با هدف مقابله حداکثری با اثرات خوردگی و تداخلهای الکترومغناطیسی صورت گرفته است. همچنین در طراحیهای کلی این محصول توجه به سازگاری با محیط زیست بیش از پیش بوده است.

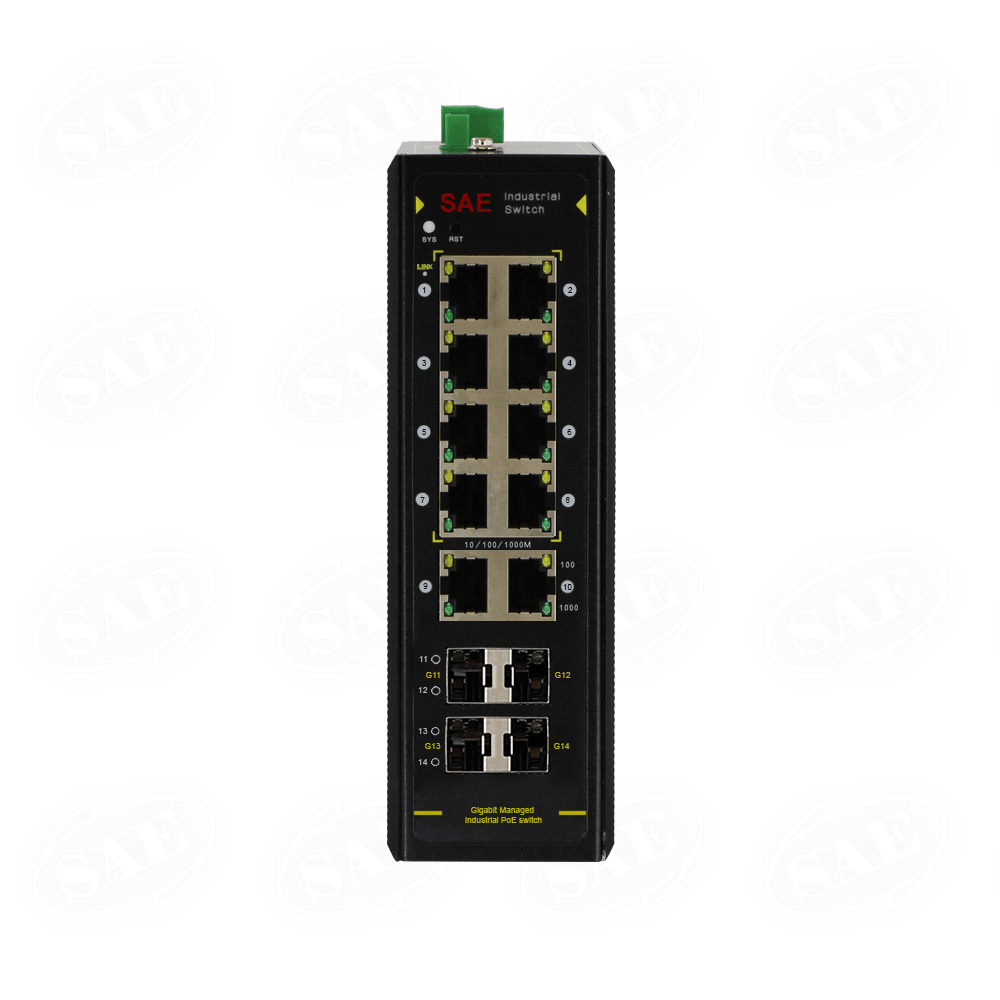

POE سوییچ صنعتی 8 پورت هوشمند ساختار اسپادانا SAE-IPE89000F-QFIM
Product | |
---|---|
Product name | SAE-IPE89000F-QGSFPM |
Product code | I892 |
Performance (Switching capacity and forwarding rate) | |
Forwarding Rate(Mbps) | 20.83 |
Switching Capacity in Gigabits per Second (Gbps) | 256 |
Interface | |
Ports | 10x Port 10/100/1000Base-T + 4x (100/1000M) LC Fiber |
Layer 2 Switching | |
Spanning Tree Protocol (STP) | Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w |
G.8032 ERPS | <50ms ring protection for industrial high reliable application |
Aggregation | Link Aggregation Control Protocol (LACP) IEEE 802.3ad; Up to 7 groups ;Up to 14 ports per group |
VLAN | Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;Port-based VLAN; 802.1Q tag-based VLAN |
IGMP v1/v2 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups (source-specific multicasting is not supported) |
Security | |
Secure Shell (SSH) Protocol | SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL), HTTPS | SSL encrypts the http traffic, allowing advance secure access to the browser-based management GUI in the switch |
Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
DHCP Snooping | prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection |
IP Source Guard | Prevents datagram with spoofed addresses from being in the network |
ARP Inspection | Prevent ARP spoofing attacks and ARP |
Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
ACLs | Support for up to 256 entries; Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet |
Quality of Service | |
Hardware | Support 8 hardware queues |
Scheduling | 8 COS queues per port support strict priority and weighted round-robin (WRR) |
Classification | Port based; 802.1p(PCP) VLAN priority based; |
Rate Limiting | Ingress policer;egress shaping and rate control;per VLAN,per port and flow based |
Management (Web/ SSL, Telnet/ SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog) | |
Web GUI interface | Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring |
Dual Image | Dual image provides independent primary and secondary OS files for backup while upgrading |
Firmware upgrade | Web browser upgrade (HTTP/ HTTPs) and TFTP;Upgrade through console port as well |
Port mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
Other management | Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support) |
Green Ethernet | |
Green End | Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically |
Energy-saving Ethernet (EEE) | turns off power on Gigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any packets when the switch detects the link up |
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter. |
General | |
Jumbo frames | Frame sizes up to 9KB supported on Gigabit interfaces |
MAC Table | Up to 8K MAC addresses |
Discovery | |
Link Layer Discovery Protocol (LLDP) | Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, principally wired Ethernet. |
PoE Specification | |
PoE Standard | IEEE802.3af/IEEE802.3at |
PoE Ports | 8 ports support PoE |
Max. PoE Power Per Port | Max. PoE Power Per Port |
Power Type | End-span(Mid-span optional) |
Minimum Requirements | |
Web browser | Mozilla Firefox version 2.5 or later, Microsoft Internet Explorer version 6 or later; Category 5 Ethernet network cable; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in ne |
Environmental Aspects | |
Dimensions | 165x145x45mm |
Working Environment | Operating temperature: --40℃to 75℃; Storage temperature: --40℃to 75℃; Operating humidity: 10% to 90% , relative, non-condensing |
